Accessories & Replacement Parts
Regulators & Relief Valves
| Part Number | Image | Description |
|---|---|---|
| 50-005 |  |
912-type fuel gas regulator; 1/4″ NPT; max inlet 50 psig, outlet range 3-7 inches w.c.; for use in natural gas fueled Catco heaters; Fisher or similar |

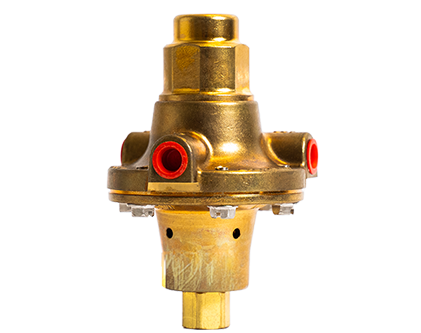

| 50-035 |  |
High-pressure regulator; brass; 1/4″ NPT; max inlet 5500 psig, outlet range 0-75 psig; three outlets; Victor Meco Type P or similar |

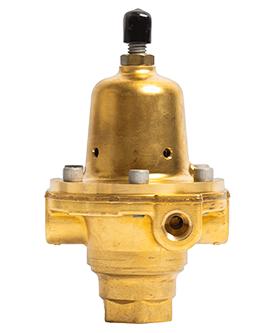

| 50-040 |  |
High-pressure regulator; brass; 1/4″ NPT; max inlet 5500 psig, outlet range 0-75 psig; two outlets; Fisher 1301 or similar |

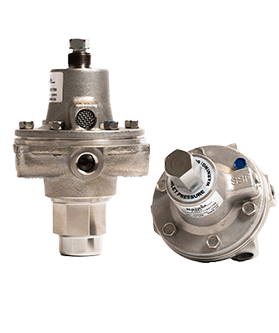

| 50-037 |  |
High-pressure regulator; stainless-steel; 1/4″ NPT; max inlet 5500 psig, outlet range of 0-150 psig; three outlets; Belgas P37 or similar |

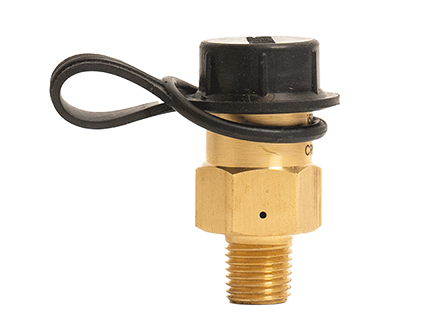

| 30-058 |  |
Relief valve; brass; 1/4″ NPT; relieves at 150 psig; Fisher H120 or similar |

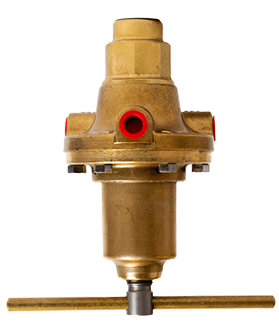

| 50-036 |  |
High-pressure regulator; brass; 1/4″ NPT; max inlet 5500 psig, max outlet 550 psig; two outlets; T-handle; Victor Meco Type P600 or similar |

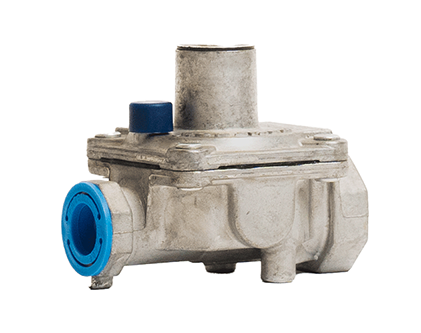

| 50-000 |  |
Low-pressure appliance regulator; 1/4″ NPT; max inlet 1/2 psig, outlet range 3-7 inches WC; for use in natural gas fueled Catco heaters; Maxitrol or similar |

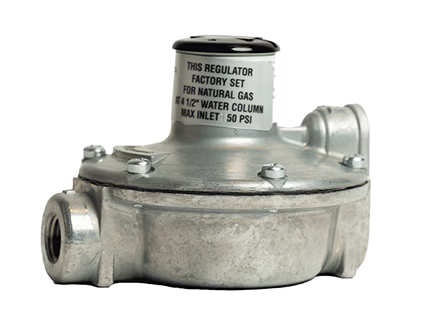

| 50-010 | |
912-type fuel gas regulator; 1/4″ NPT; max inlet 250 psig, outlet range 9.25-13 inches w.c.; for use in LPG fueled Catco heaters; Fisher or similar |
Shutoff Valves & Thermocouples
| Part Number | Image | Description |
|---|---|---|

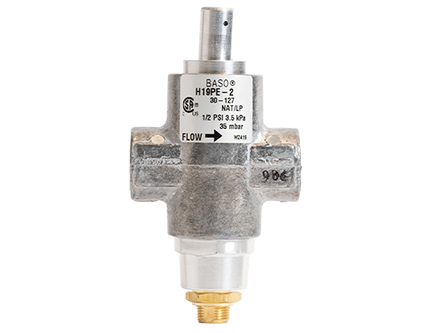

| 30-127 |  |
Low temperature shutoff valve, sometimes called a “safety valve”, Baso H19 or similar, 1/4″ NPT; 1/2 psi max inlet |

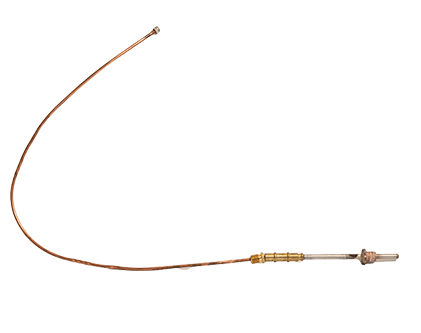

| 30-010 |  |
Thermocouple for Catco heaters; 18″ lead |

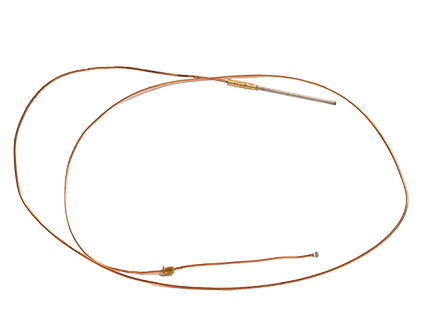

| 30-012 |  |
Extra long thermocouple for Catco heaters; 72″ lead |
Temperature Control
| Part Number | Image | Description |
|---|---|---|

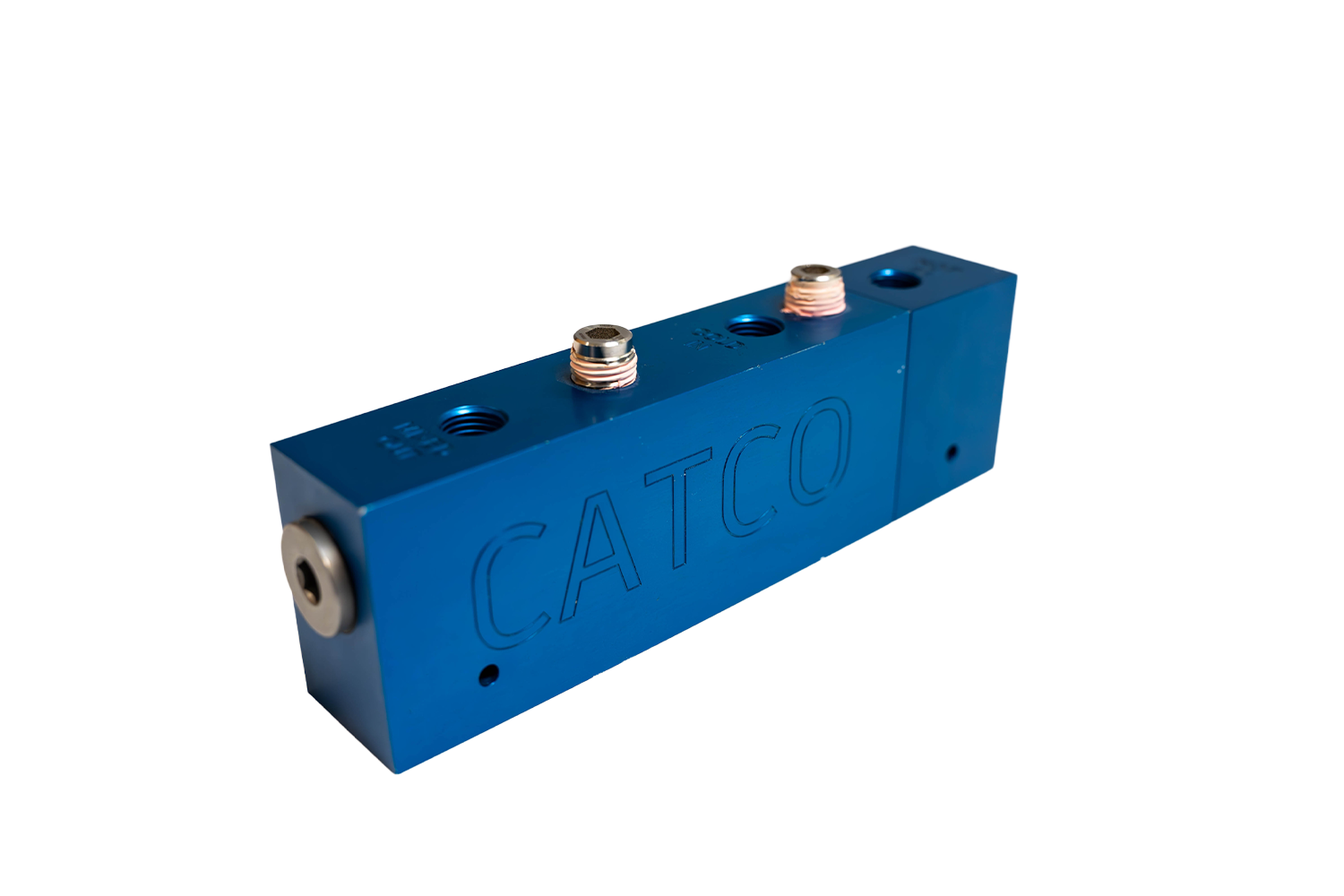

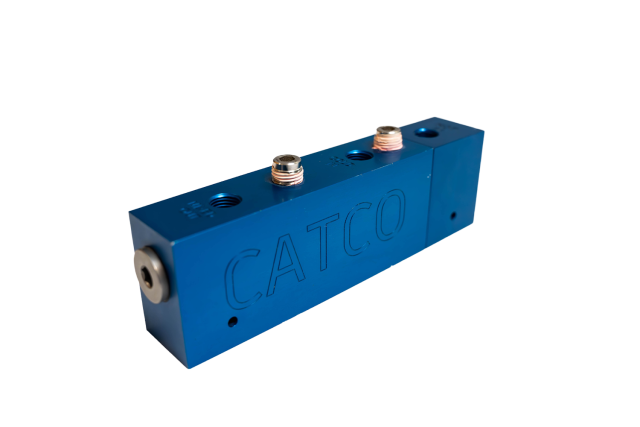

| 40-075 |  |
Steady Heat Controller; for use with Catco Instrument Gas Heater; gas outlet temp 135°-140° F; 1/4″ NPT |
| 40-076 | |
Steady Heat Controller w/ retrofit kit; for use with Catco Instrument Gas Heater; includes SHC and required fittings |

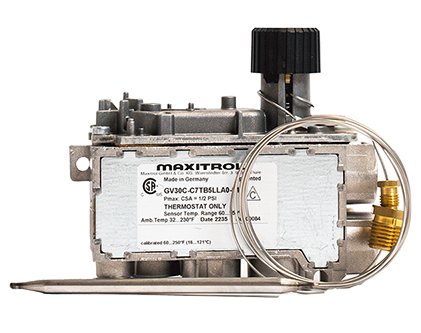

| 40-037-XXXX |  |
Thermostat for heaters from 1500 to 72,000 BTU/hr; 3/8” NPT; specify heater BTU rating when ordering. |
| 30-030 |  |
Manual turndown valve; reduces BTU by 50% when engaged; specify heater BTU rating when ordering |
Wall & Floor Mount Brackets
| Part Number | Image | Description |
|---|---|---|

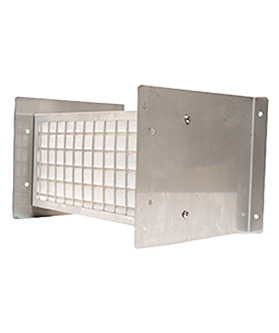

| 10-010 |  |
Wall mount bracket for 6×12, 6×24, 12×12, 12×24 heaters; stainless-steel |

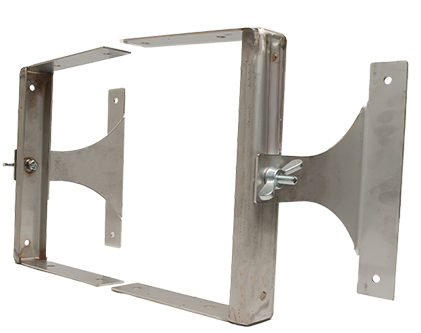

| 10-025 |  |
Wall mount bracket for 12×36, 12×48, 12×60 heaters; stainless-steel |
| 10-026 | |
Wall mount bracket for 18×36, 18×48, 18×60 heaters; stainless-steel |
| 10-027 | |
Wall mount bracket for 24×24, 24×48, 24×60, 24×72 heaters; stainless-steel |

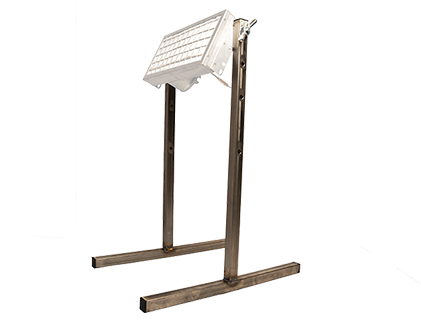

| 10-069 |  |
Floor mount bracket for 6×12, 6×24, 12×12, 12×24 heaters; stainless-steel. |
| 10-100 | |
Floor mount bracket for 12×36, 12×48, 12×60 heaters; stainless-steel. |

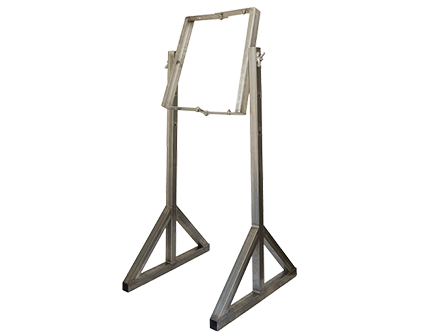

| 10-101 |  |
Floor mount bracket for 18×36, 18×48, 18×60 heaters; stainless-steel. |
| 10-102 | |
Floor mount bracket for 24×24, 24×48, 24×60, 24×72 heaters; stainless-steel. |
Starting Cables
| Part Number | Image | Description |
|---|---|---|

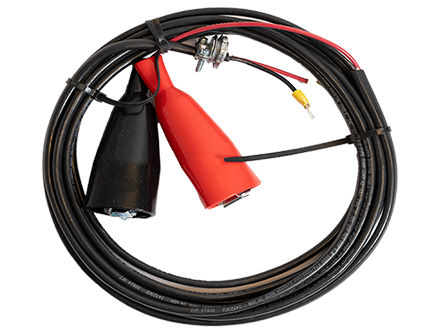

| 20-020 |  |
16’ cable; battery clips; 12 V start; 12 ga wire; for use with plain junction box |
| 20-021 | |
16’ cable; battery clips; 12 V start; 12 ga wire; for use with EP junction box |

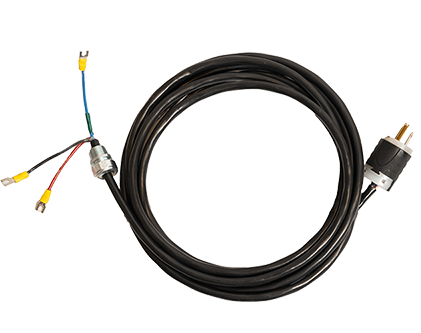

| 20-023 |  |
16’ cable; three-prong plug; 120 V start; 12 ga wire; for use with EP junction box |
| 20-030 | |
30’ cable; battery clips; 12 V start; 12 ga wire; for use with plain junction box |

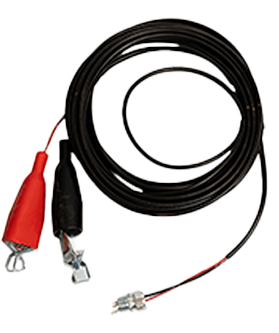

| 20-031 |  |
30’ cable; battery clips; 12 V start; 12 ga wire; for use with EP junction box |
| 20-026 |  |
2’ cable; Crouse-Hinds or Appleton explosion-proof male plug; 12 V start; 12 ga wire; for use with EP junction box |

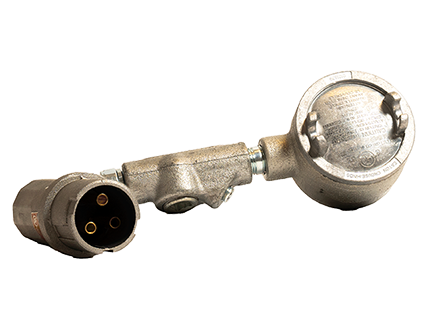

| 20-032 | |
2’ cable; Crouse-Hinds or Appleton explosion-proof male plug; 120 V start; 12 ga wire; for use with EP junction box |
Reflectors
| Part Number | Image | Description |
|---|---|---|
| 61-003 |  |
Face-mounted reflector designed for a 6×12 heater |

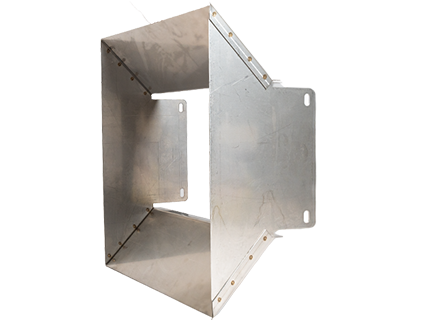

| 61-021 |  |
Face-mounted reflector designed for a 12×12 heater |
| 61-020 |  |
Face-mounted reflector designed for a 6×24 heater |
| 61-022 | |
Face-mounted reflector designed for a 12×24 heater |

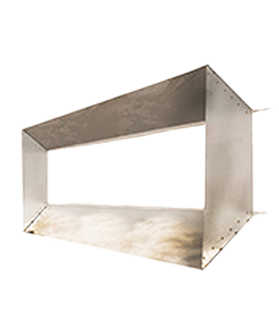

| 61-023 |  |
Face-mounted reflector designed for a 12×36 heater |
| 61-025 | |
Face-mounted reflector designed for a 12×48 heater |
| 61-012 | |
Face-mounted reflector designed for a 12×60 heater |

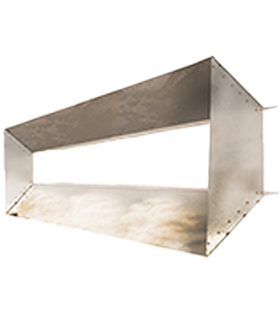

| 61-024 | |
Face-mounted reflector designed for a 18x36heater |
| 61-027 |  |
Face-mounted reflector designed for a 18×48 heater |
| 61-028 | |
Face-mounted reflector designed for a 18×60 heater |

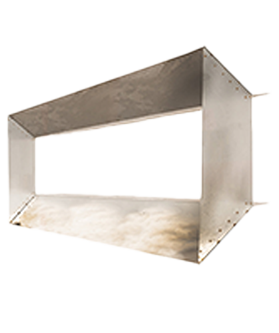

| 61-011 | |
Face-mounted reflector designed for a 24×24 heater |
| 61-030 |  |
Face-mounted reflector designed for a 24×48 heater |
| 61-031 | |
Face-mounted reflector designed for a 24×60 heater |
| 61-032 | |
Face-mounted reflector designed for a 24×72 heater |
Other Accessories
| Part Number | Image | Description |
|---|---|---|

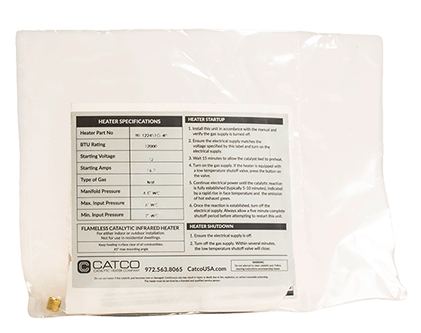

| 30-003-XXXX |  |
Fuel conversion kit; includes alternate orifice and label; specify details when ordering |

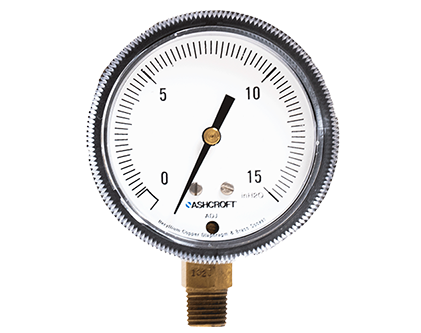

| 35-073 |  |
Gauge; 0-15 inches w.c.; 1/4″ NPT; bottom mount |

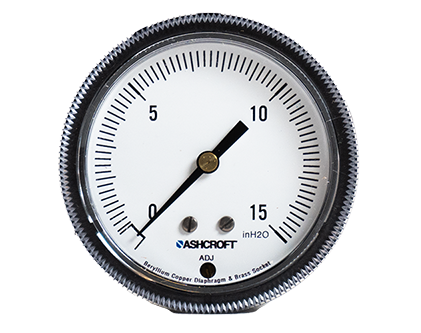

| 35-076 |  |
Gauge; 0-15 inches w.c.; 1/4″ NPT; back mount |

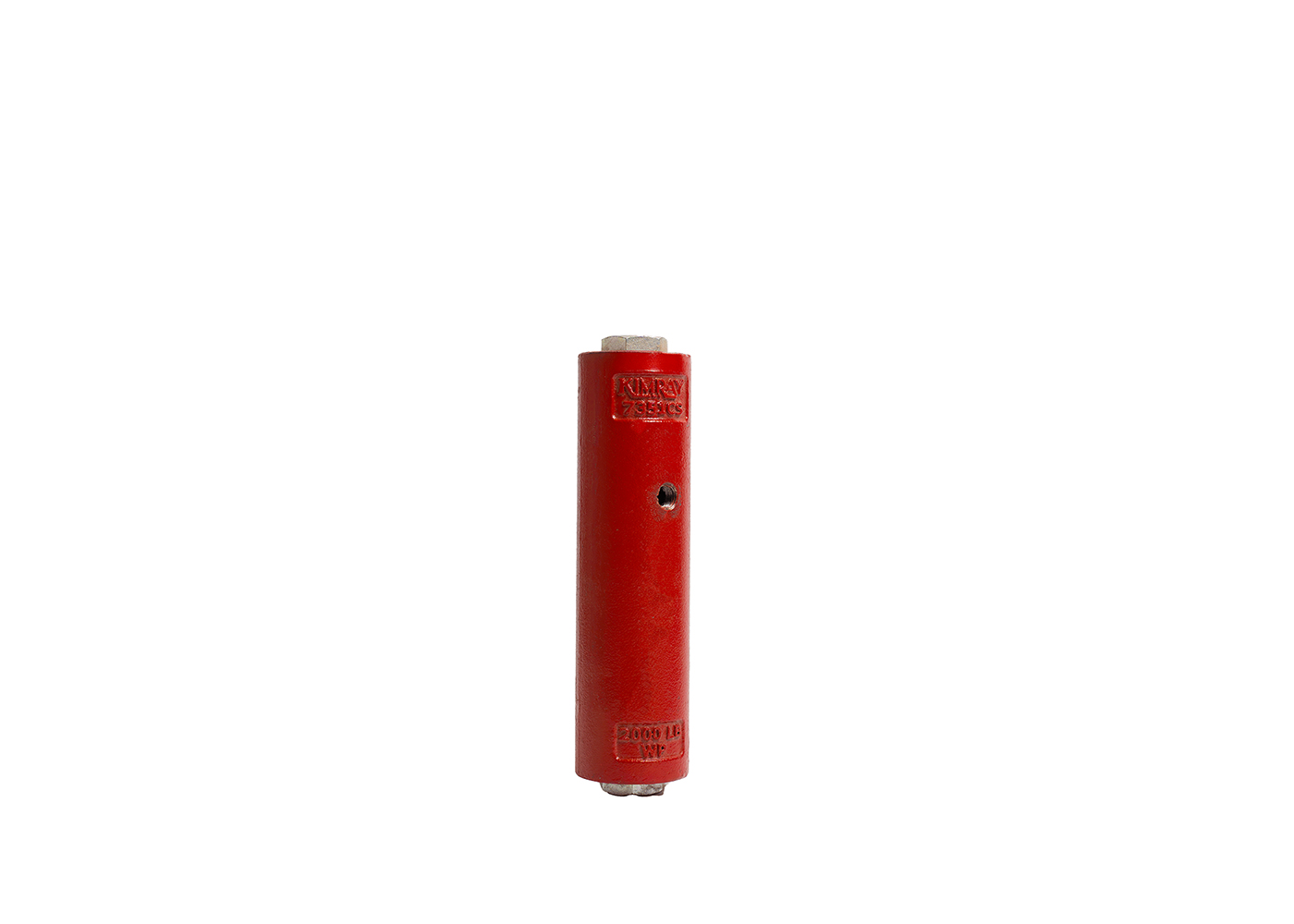

| 30-070 |  |
Drip pot; max inlet 2000 psig |
| 30-071 |  |
Drip pot; max inlet 6000 psig |

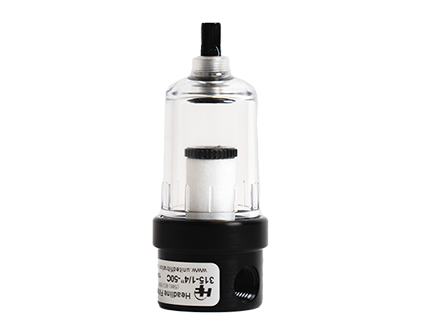

| 30-090 |  |
Fuel gas filter assembly; max inlet 150 psig; clear acryllic bowl |

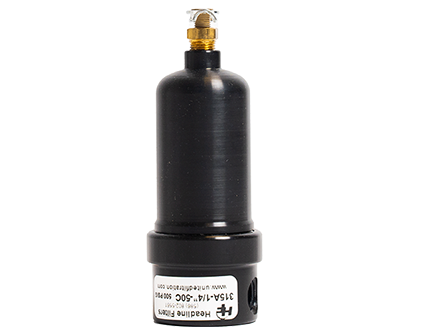

| 30-091 |  |
Fuel gas filter assembly; max inlet 500 psig; aluminum bowl |

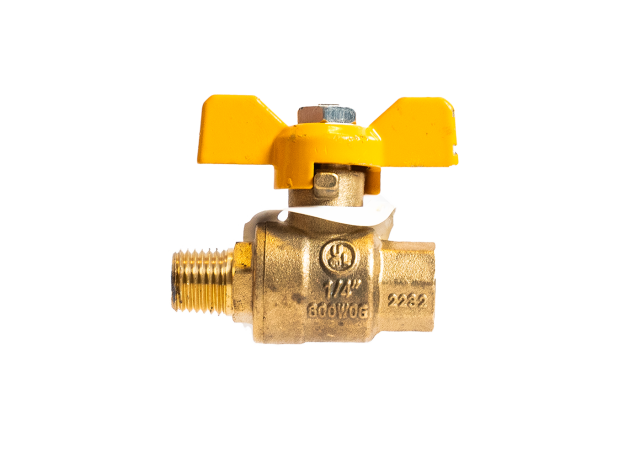

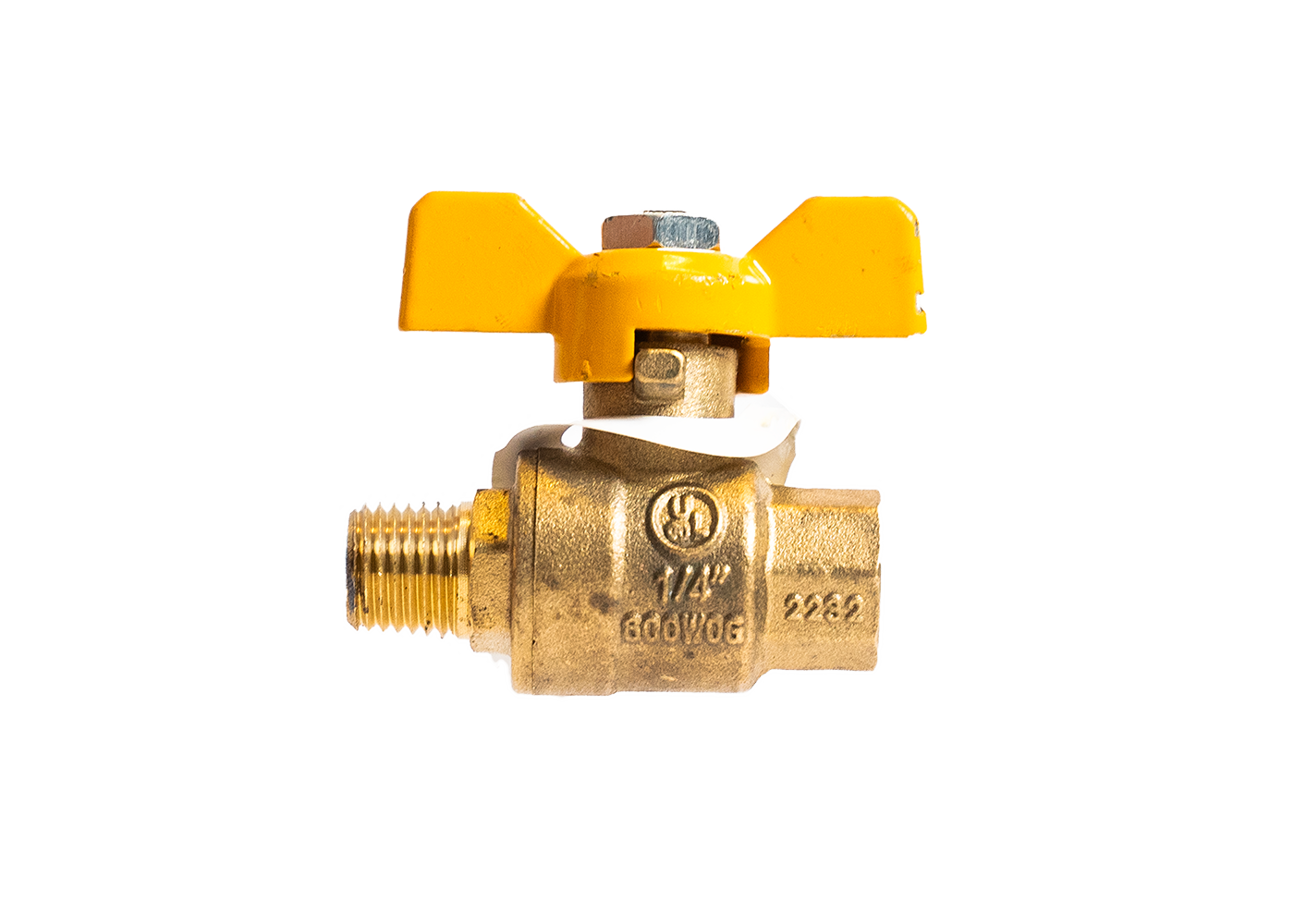

| 30-032 | |
Mini ball valve; 1/4″ NPT; M x F |

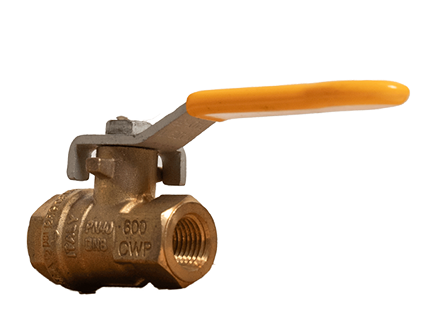

| 30-039 |  |
Mini ball valve; 1/4″ NPT; F x F |
